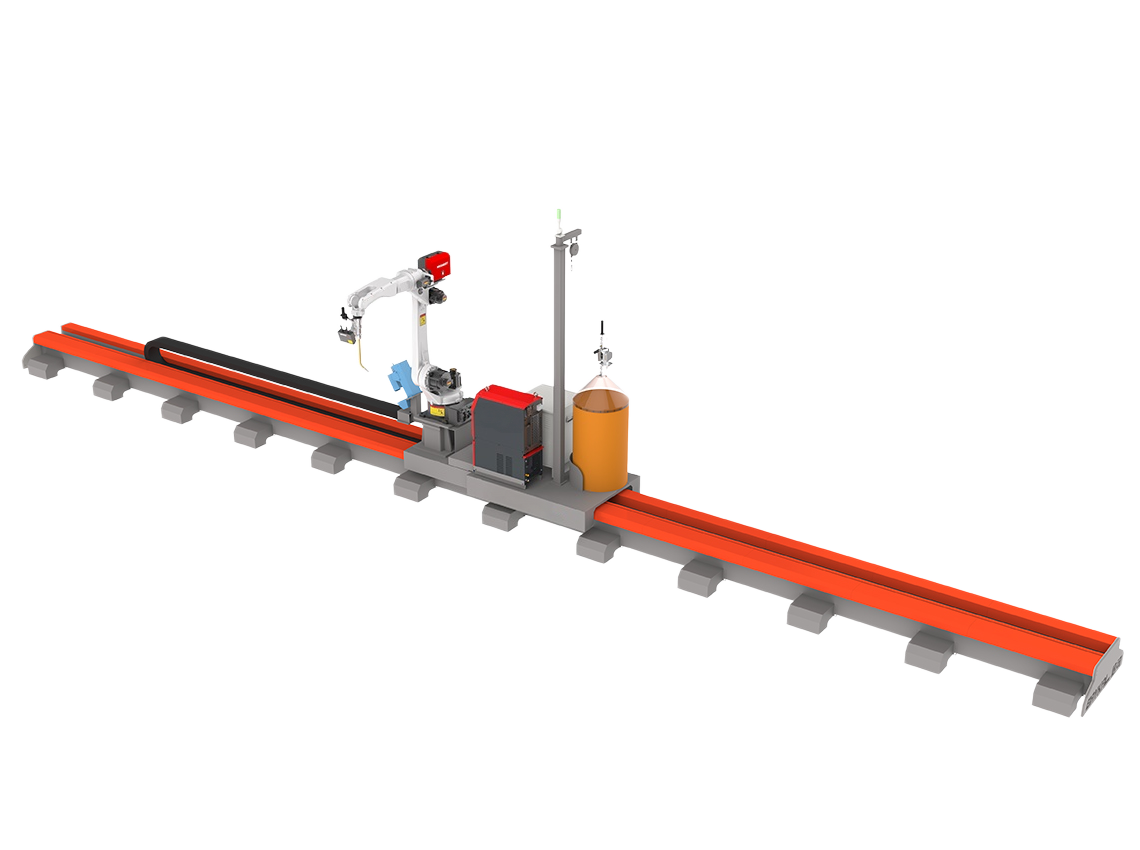

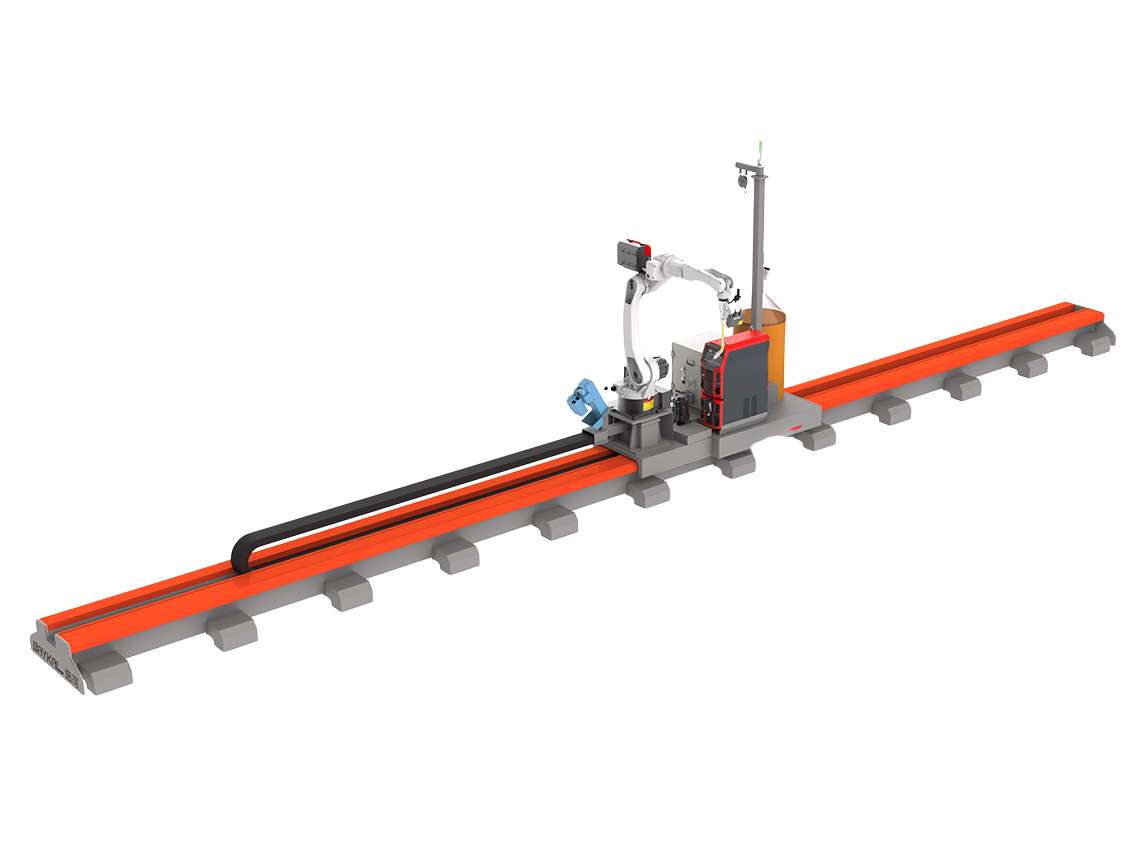

The Cantilever type welding robot BR-2010A Pro/DG12 is especially suitable for manufacturers that process structural steel parts, fabricated assemblies, and components with frequent model changes. In environments where product variety is high and setup time directly affects profitability, its one-click welding workflow supports both efficiency and consistency without adding unnecessary programming burden to operators.

Core Operating Principle

This solution is built to simplify how robotic welding is prepared and executed. After TEKLA drawings are imported, the system uses digital part information as the basis for weld path planning. A laser camera then captures the actual placement of the workpiece, allowing the robot to align the virtual welding logic with real production conditions. Because of this integrated positioning process, the workpiece does not have to be placed in a strictly fixed location, and dedicated tooling or fixtures are not required for basic operation.

Once positioning is completed, the welding program is generated automatically, and the welding process is matched automatically according to the task data available in the system workflow. This reduces dependence on manual teaching and supports more repeatable production, particularly when operators need to switch between jobs quickly.

Key Functional Advantages

• No teaching programming required: eliminates the time-consuming manual teaching process common in traditional robotic welding cells.

• Direct TEKLA drawing import: helps create a smoother connection between design data and shop-floor execution.

• No tooling or fixtures needed: reduces preparation cost and simplifies changeover between different parts.

• Flexible workpiece placement: parts can be placed anywhere within the workable range, lowering the burden on material handling accuracy.

• Laser camera positioning: improves the system’s ability to recognize actual part location before welding begins.

• Automatic welding program generation: shortens setup time and supports stable process execution.

• Automatic process matching: streamlines production preparation and reduces manual intervention.

• One-click welding start: enables a simpler operator workflow and faster job initiation.
