This series is a gantry-mobile CNC high-speed drilling and milling machine, engineered for drilling, tapping, and milling operations on steel plates, flanges, heat exchangers, tube sheets, and slewing bearings. It supports carbide drills with internal cooling for high-speed drilling applications. Equipped with either KND or Siemens CNC systems featuring bus control, the machine offers user-friendly operation and delivers high-precision, automated production ideal for multi-variety, small-to-medium batch manufacturing.
Full-range Machinery & Customized Non-standard Solutions
Authorized Certificates & Independent R&D Patents
Over 10 Years Global Export & Worldwide Project Cases

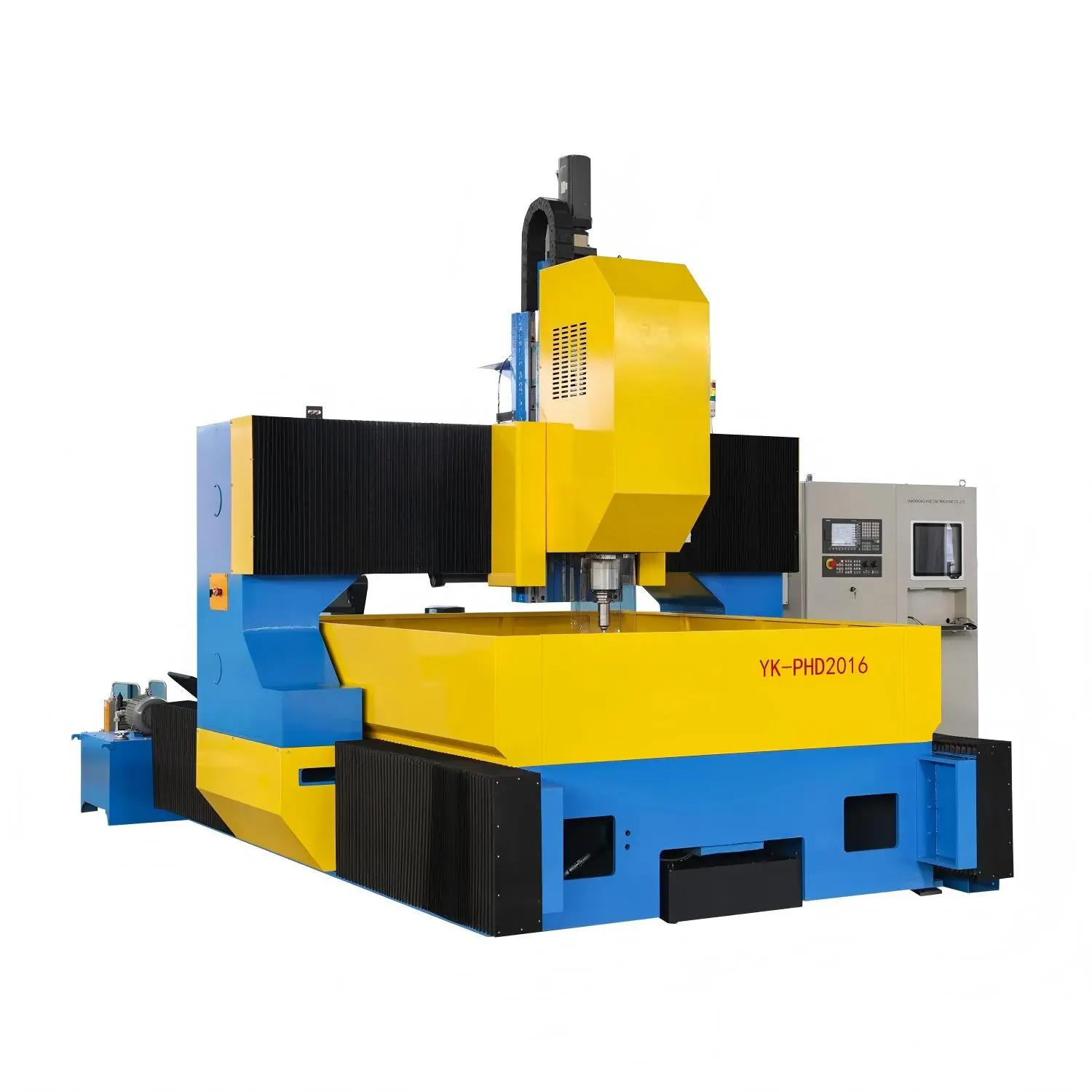

1.Introduction for High Speed CNC Drilling Milling Machine for Steel Plates

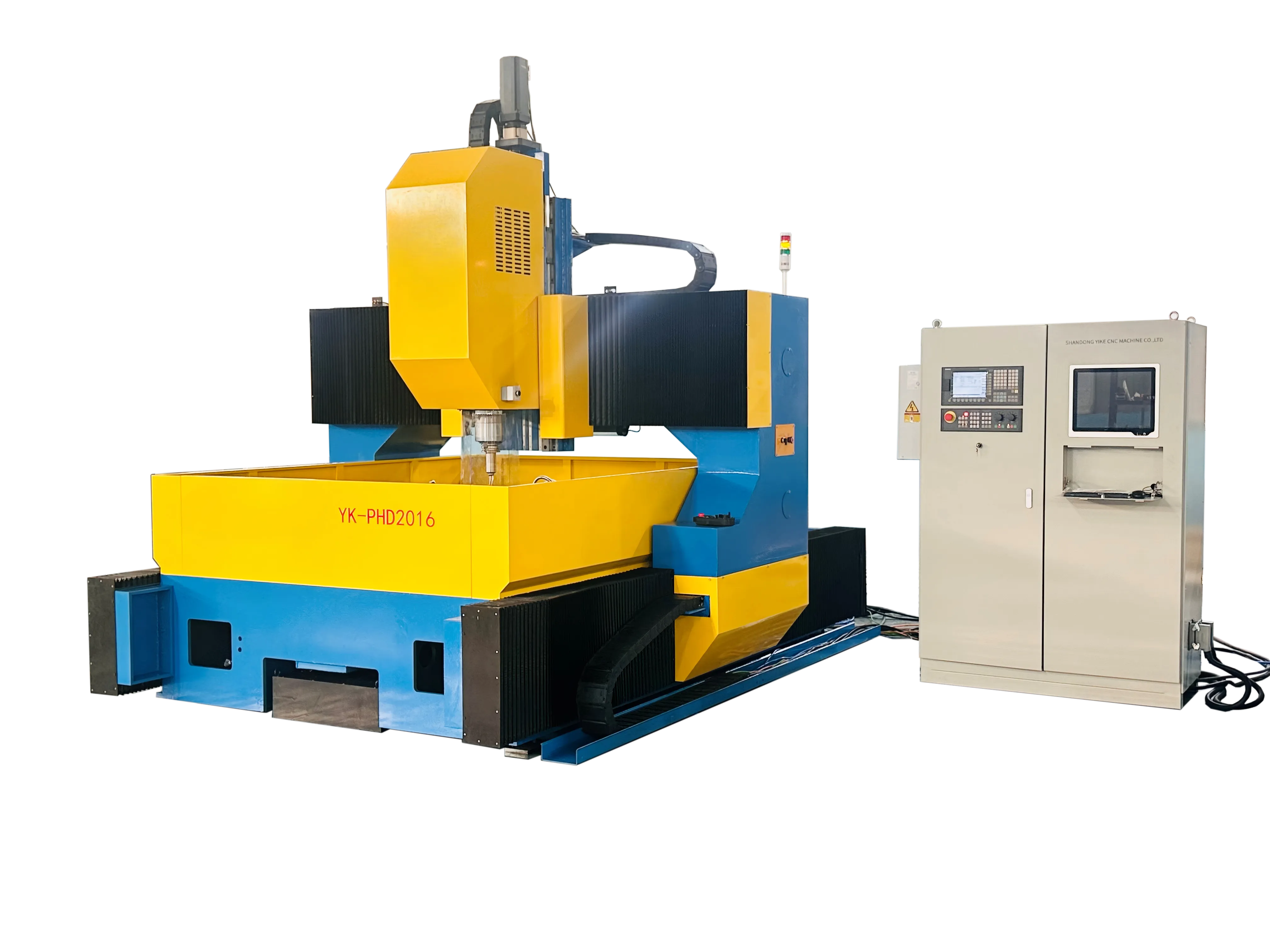

Models: YK-PHD1010 / YK-PHD1616 / YK-PHD2016 / YK-PHD3016 / YK-PHD4016
This series is a gantry-mobile CNC high-speed drilling and milling machine, engineered for drilling, tapping, and milling operations on steel plates, flanges, heat exchangers, tube sheets, and slewing bearings. It supports carbide drills with internal cooling for high-speed drilling applications. Equipped with either KND or Siemens CNC systems featuring bus control, the machine offers user-friendly operation and delivers high-precision, automated production ideal for multi-variety, small-to-medium batch manufacturing.
2.Technical parameter for High Speed CNC Drilling Milling Machine for Steel Plates:
3.Characters for High Speed CNC Drilling Milling Machine for Steel Plates:

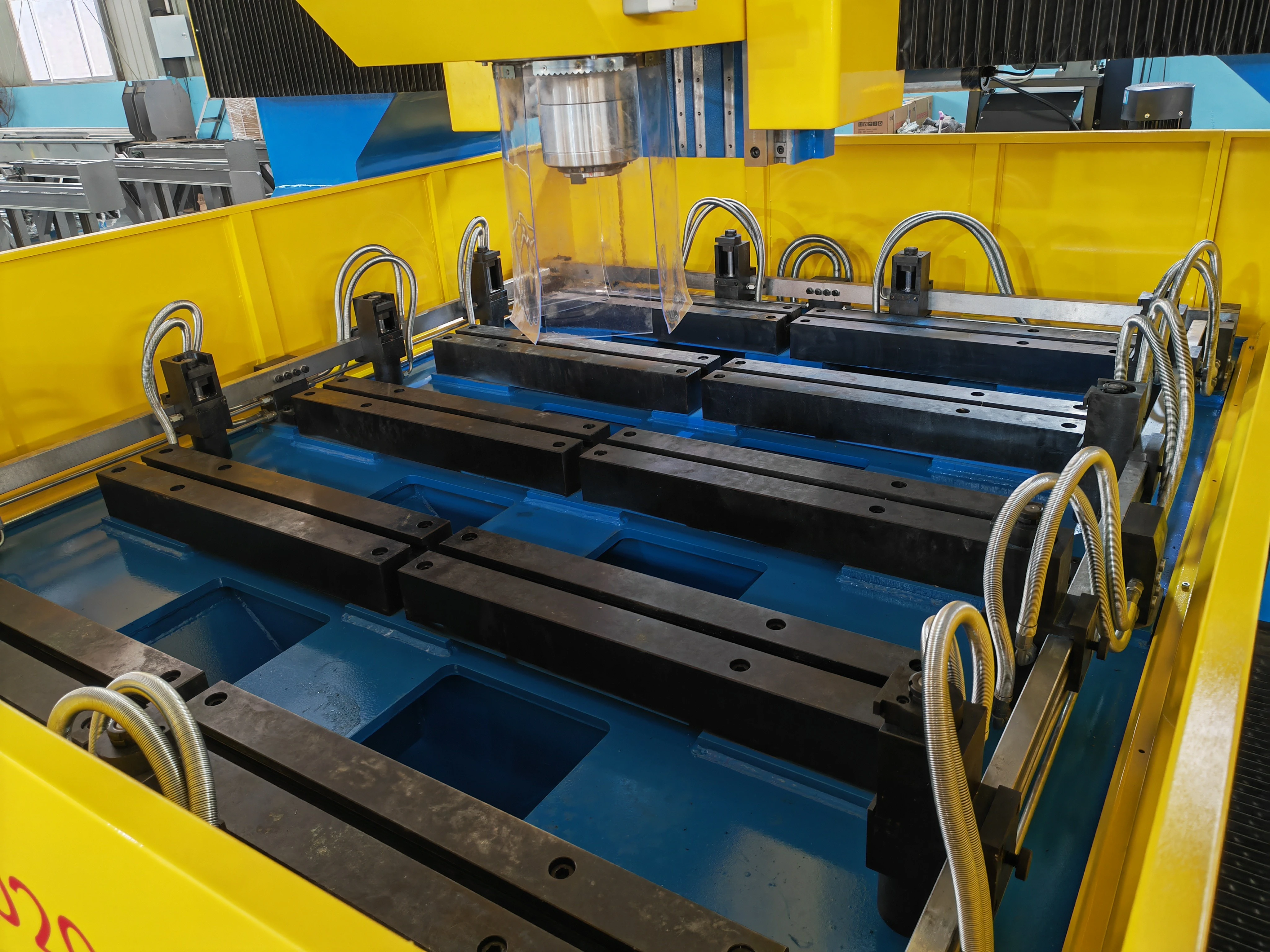

3.1 This machine aims to drilling holes on the metal plate of building steel structure, power iron tower and petrochemical equipment. It adopts gantry type structure. The axis X, Y and Z are drove by servo motor through precise ball guide screw. It positions automatically, precisely and quickly and finishes the processing of drilling automatically.
3.2 The control system of this machine adopts KND or SIEMENS control system, which is easy for new operator even without rich experiences.
3.3 Automatic chip removal and circulation cooling system reduce the nonproductive time and labor intensity. The operator only need to load and unload work piece and change the drills.

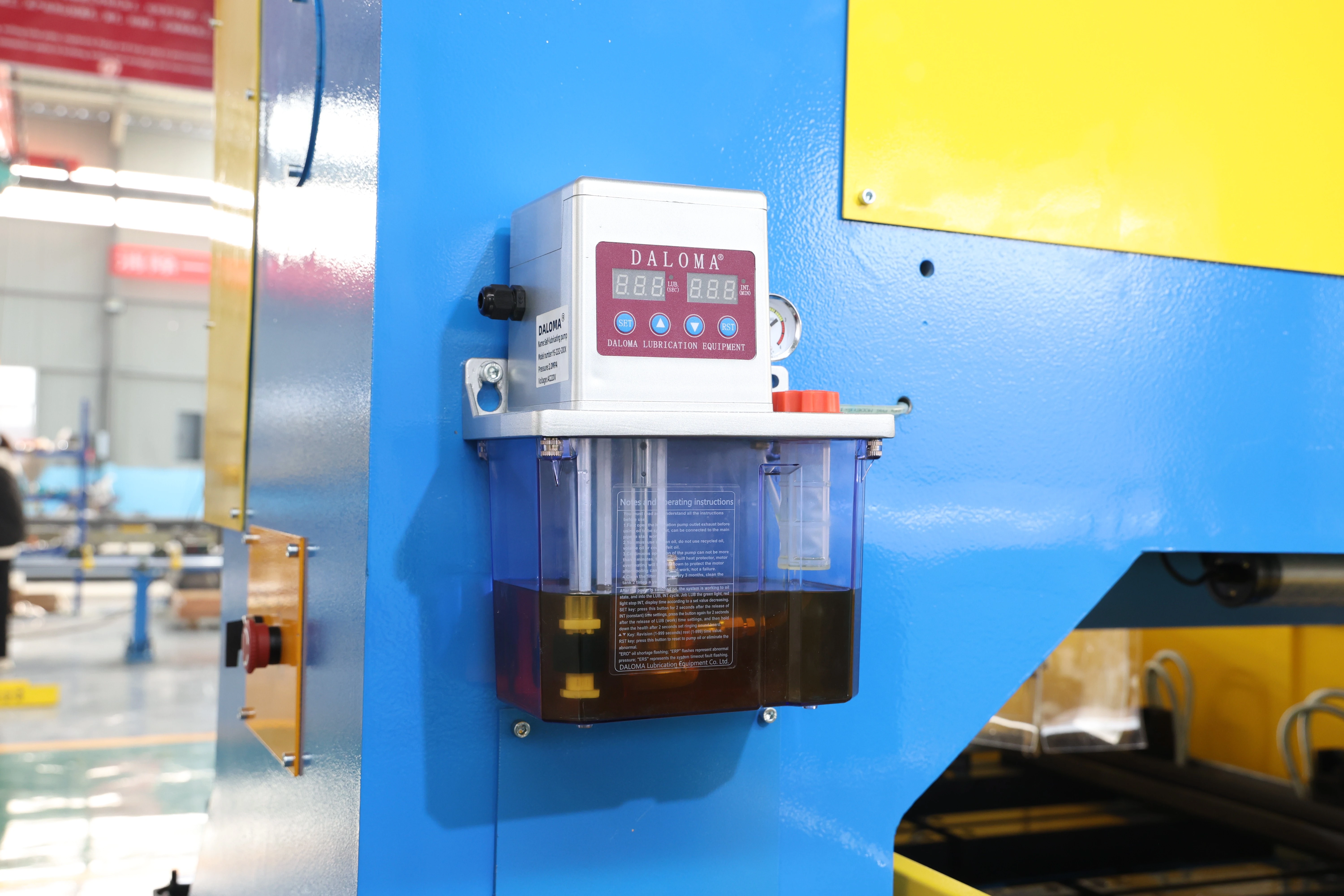

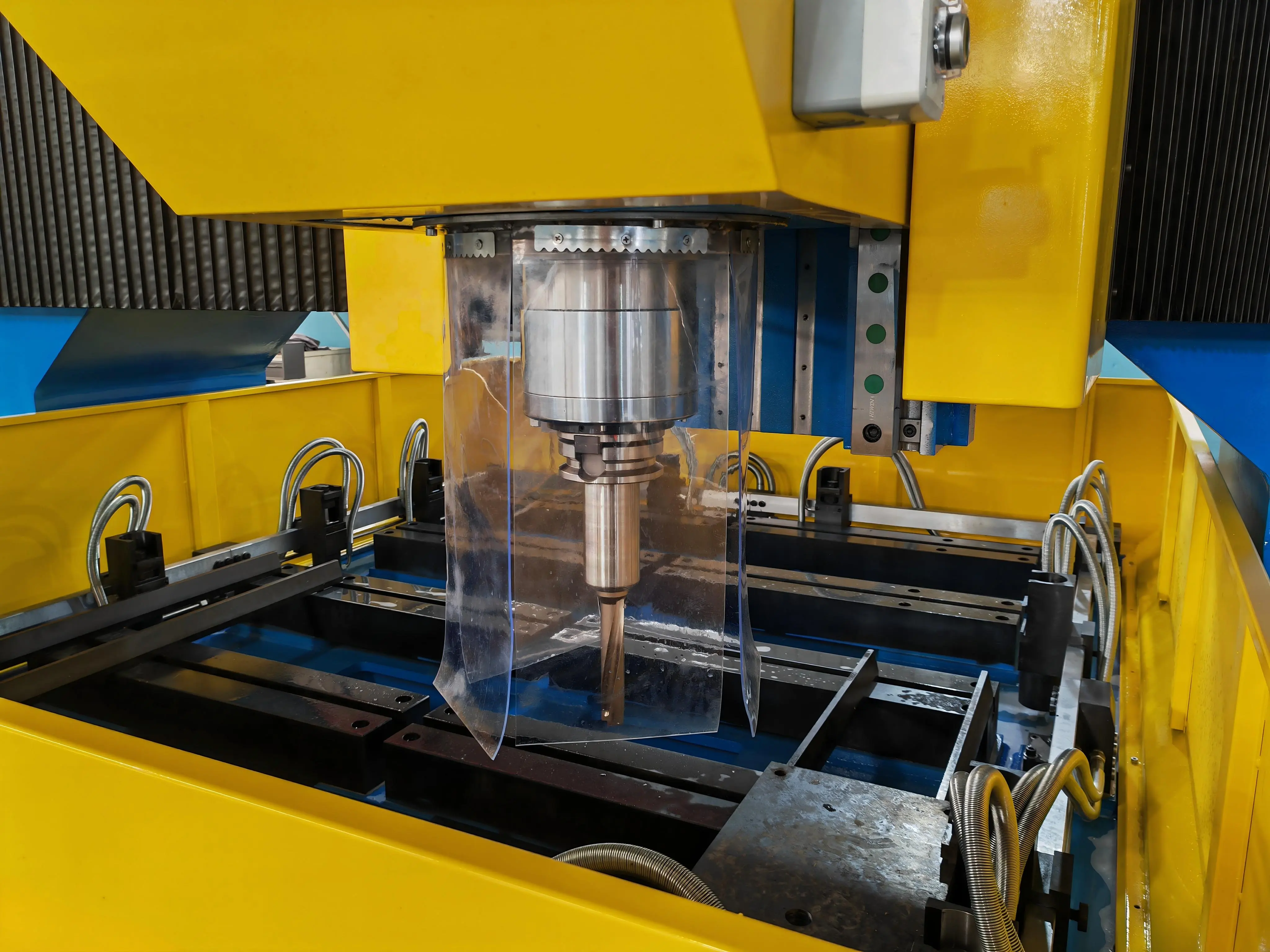

3.4 Machine use Taiwan BT40/BT50 spindle, internal cooling type, high accuracy spindle. It can use carbide drill. Machine also adopts pneumatic tools cylinder, to make tools change more easier. The big power main spindle motor is driven by servo synchronization belt. This is can bear big scope of rotation speed.
3.5 This CNC drilling machine is designed according to the workpiece features and precision requirements; it has compact form and is flexible, it meets the processing requirements better. No matter the holes are arranged as circle or straight line, it can finish the work quickly and accurately. Therefore, this machine is cost-effective choice.
