Built for modern production lines that demand precision, flexibility, and dependable cycle performance, this Multipurpose Robot is designed to support handling, welding, and cutting tasks within a single robotic platform. Its 6-axis vertical articulated structure gives manufacturers the freedom to automate repetitive operations while maintaining the control needed for parts that require stable motion, accurate path tracking, and repeatable positioning.

With a 10 kg payload and a maximum reach of 1584 mm, the robot fits well into a wide range of industrial cells where moderate payload capacity and broad working coverage are both essential. The repeatability of ±0.08 mm makes it suitable for production environments where consistency matters, whether the application involves transferring workpieces, guiding a welding torch, or executing cutting paths that benefit from predictable robotic movement. This balance of reach, load capacity, and positional stability helps reduce manual intervention and improves process reliability over long operating cycles.

Key Performance Advantages

• 6-axis motion structure for flexible positioning in complex workspaces

• 10 kg payload suitable for tooling, grippers, and process-specific end effectors

• 1584 mm maximum reach for efficient coverage of fixtures, pallets, and work areas

• ±0.08 mm repeatability to support stable and repeatable industrial processes

• Equivalent IP65 protection for demanding shop-floor conditions

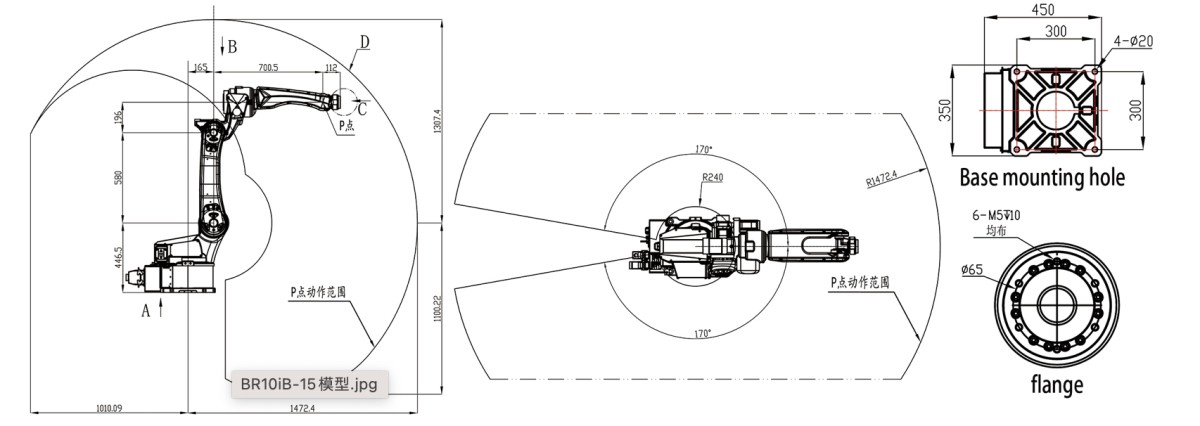

• Multiple installation methods including ground, hoisting, and side mounting

The axis performance data also shows strong dynamic capability. J1 reaches 259.3°/s, J4 reaches 294.1°/s, and the remaining axes provide balanced speed characteristics to support efficient cycle times without compromising controllability. In practical use, this means the robot can respond well in applications that require frequent directional changes, approach-and-retract movements, or multi-angle operations around parts and fixtures.

Suitable for Multiple Industrial Tasks

One of the strongest values of this Multipurpose Robot is operational versatility. Instead of investing in highly specialized equipment for every separate task, manufacturers can integrate one robotic unit into different production processes according to project requirements. This is especially useful for workshops handling mixed production, medium-batch manufacturing, or lines that may expand into new products over time.

1. Handling: suitable for loading, unloading, part transfer, sorting, and general material movement within automated cells.

2. Welding: well matched for robotic welding applications that require stable path motion and repeatable torch positioning.

3. Cutting: can be integrated into cutting operations where articulated movement helps access different contours and working angles.

Its installation flexibility further supports efficient system design. Ground mounting is ideal for standard automation layouts, while hoisting and side mounting options can help optimize valuable floor space or adapt to special fixture arrangements. For integrators and factory planners, this creates more freedom when configuring cells around conveyors, positioners, tables, or enclosed process stations.
