This welding manipulator is a core piece of equipment designed specifically for automated welding applications. Combined with welding positioners, roller frames, and other components, it forms a highly efficient automated welding workstation. The equipment features strong structural rigidity and flexible operation, making it suitable for longitudinal, circumferential, and internal/external seam welding in industries such as pressure vessels, pipelines, and steel structures.

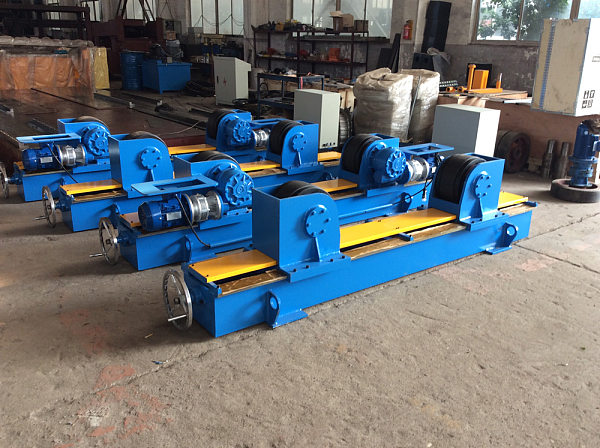

The self-aligning welding rotator is a specialized auxiliary device designed to support and precisely rotate cylindrical workpieces during welding operations.
1.1 System Composition
A complete welding rotator system consists of three primary components:
Active (driven) rotator – equipped with a motor and reduction drive to provide rotational power
Passive (idle) rotator – provides support and follows the rotation of the driven unit
Control system – enables precise speed regulation for optimal welding conditions

A Welding Rotator is composed of three main components: a powered rotator (equipped with a motor), an idler rotator (without motor), and an integrated control system. Its primary function is to rotate cylindrical workpieces during welding operations, ensuring optimal positioning and consistent weld quality.
Automatic welding rotators are extensively used in butt welding of large-diameter pipes, pressure vessel fabrication, and other cylindrical assembly applications. By delivering smooth, adjustable rotation, they significantly enhance welding productivity and quality while substantially reducing operator fatigue.
As a result, welding rotators have become essential equipment in cylinder fabrication and heavy-duty welding workshops, offering a reliable solution for improving both efficiency and weld integrity.

A Welding Rotator consists of a powered rotator (with motor), an idler rotator (without motor), and a control system. It is primarily used to rotate cylindrical workpieces during welding, enabling optimal positioning and consistent weld quality.

Automatic welding rotators are widely applied in butt welding of large-diameter pipes, pressure vessels, and other cylindrical assemblies. By providing smooth and adjustable rotation, they significantly improve welding productivity and quality while reducing operator fatigue. As such, welding rotators have become essential equipment in cylinder fabrication and heavy welding workshops.

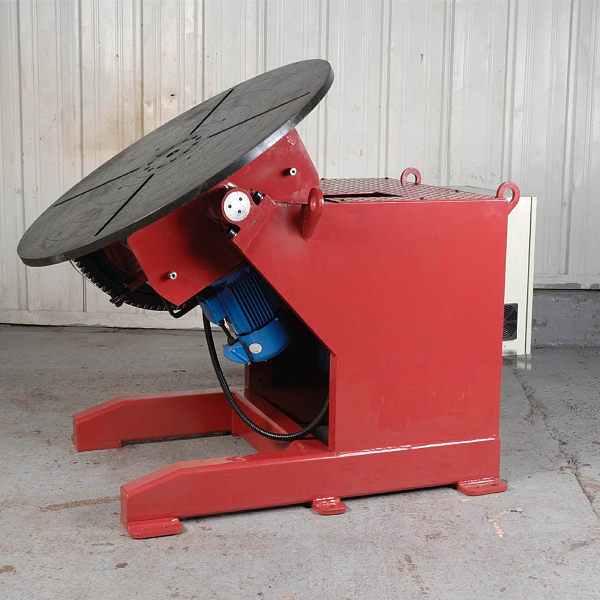

Our welding positioners are available in a wide capacity range from 100kg to 20,000kg, featuring VFD-controlled 360° continuous rotation and tilting from 0° to 90°–120° for optimal welding positioning. Standard electrical configuration is 380V/50Hz/3PH, with custom voltages available. The 100kg model is equipped with wireless remote control and foot switch for ease of operation, while the 1,000kg model offers multiple configurations including hydraulic lifting, L-shape, and head & tail stock types to suit diverse application requirements.

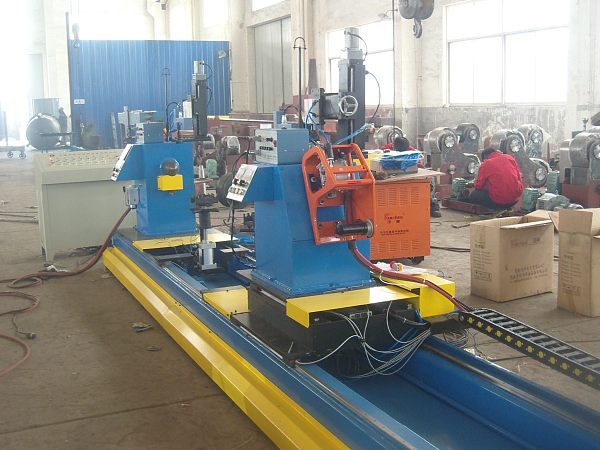

Body of space frame welding machine is assembled by steel metal,structure parts are anneal processed,quite stable and durable;Automatic space frame truss welding machine realizes welding gun swing welding,welding gun is adjusted by manual;Main and vice withstanding device is by hydraulic,Space frame welding machine will loose after welding finishes,lifting of work piece adopts lead screw by manual.Automatic space frame welding machine Length of body is 7.2 meters,and width is 900mm,max welding gap could be 3-5cm,length of work piece should be under 5.5 meters,and diameter of work piece is 42mm-180mm

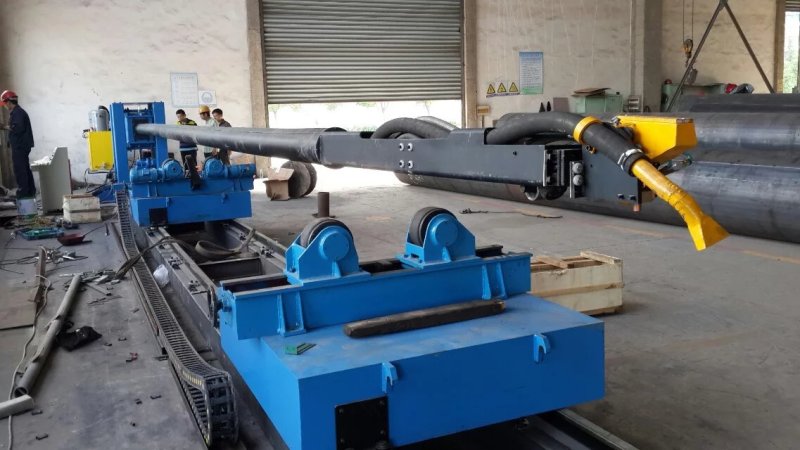

12 meter pipe welding machine is customized according to client’s request,long beam is clamped on the frame,inside seam welding is welded through moving of welding rotator on the trolley.12 meter pipe longitudinal seam welding machine Moving of trolley is controlled by VFD,stable and reliable,and speed is adjustable,12 meter pipe inside longitudinal seam welding machine meet with different welding technology.Since diameter of pipe is small,worker can not get inside for checking and adjusting,12 meter pipe outside longitudinal seam welding machinewe adopted advanced monitoring system to check welding quality and condition.Worker can check and operate all conditions from Computer screen,and work with motorized accurate adjusting,12 meter pipe welding machine finishes automatic inside longitudinal seam welding for small diameter pipe.It improve the working efficiency and welding quality.Its suitable for manufacturing small diameter pipe in batch

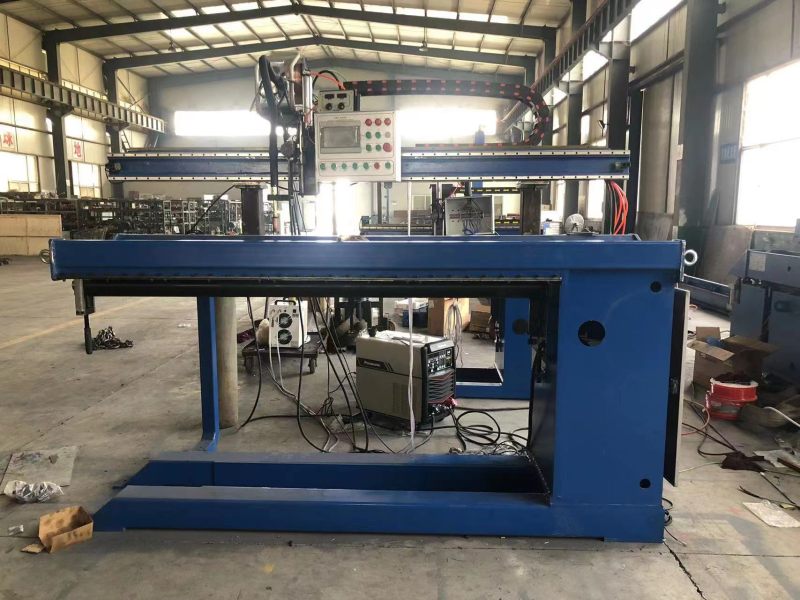

1.1 Key-type pneumatic pressing device is applied to calmp the work piece. This device provides force evenly to work piece and prevents
deformation.
1.2 It is widely applied in high quality welding and low-deformation straight seam. Use in such fi eld: petrochemical industry, solar water
heater manufactor, pipeline and automobile industry.
1.3 Controlled by PLC, driven by DC motor, and stepless speed regulation, with control system to realize automatic welding,and equipped
with straight oscillator for optional choice.

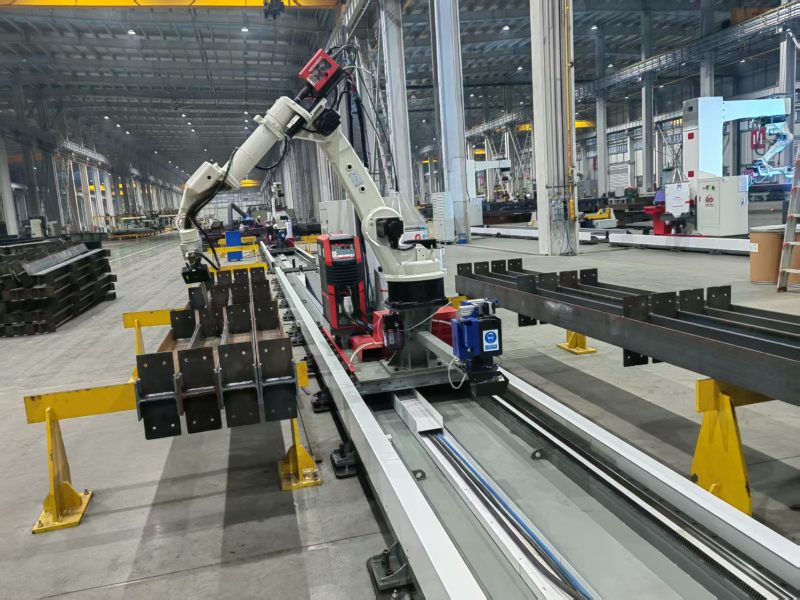

The planned floor space for this equipment (exclusive of operator stations, material storage areas, cutting buffer zones, etc.) is 12 meters in width and 2 meters in depth. The system primarily comprises the following components: one dedicated robot rail, one slide carriage, one 6‑axis welding robot with its control system, one welding power supply, one torch cleaning station, one welding torch, and ancillary equipment.

This equipment mainly using robot special rail (1 set), slide (1 set), 6 axis welding robot and its control system (1 set), welding power supply (1 set), clear gun station (1 set), welding torch (1 set), etc.
The ground rail support is 12 meters long and one ground rail is welded. For the workpiece of more than 12 meters and less than 25 meters, two robots are used to conduct regional welding, which can greatly improve the welding efficiency.

Engineered for superior practicality and reliability, the PPCW series chuck-type automatic pipe welder delivers exceptional performance across TIG, MAG, and SAW processes. This versatile system automates the entire welding sequence—from root pass to fill and cap—ensuring consistent, high-integrity joints. It is ideally suited for automated butt welding applications, including pipe-to-pipe, pipe-to-reducing pipe, pipe-to-flange, pipe-to-elbow (excluding equal straight-end elbows), and pipe-to-tee configurations.
