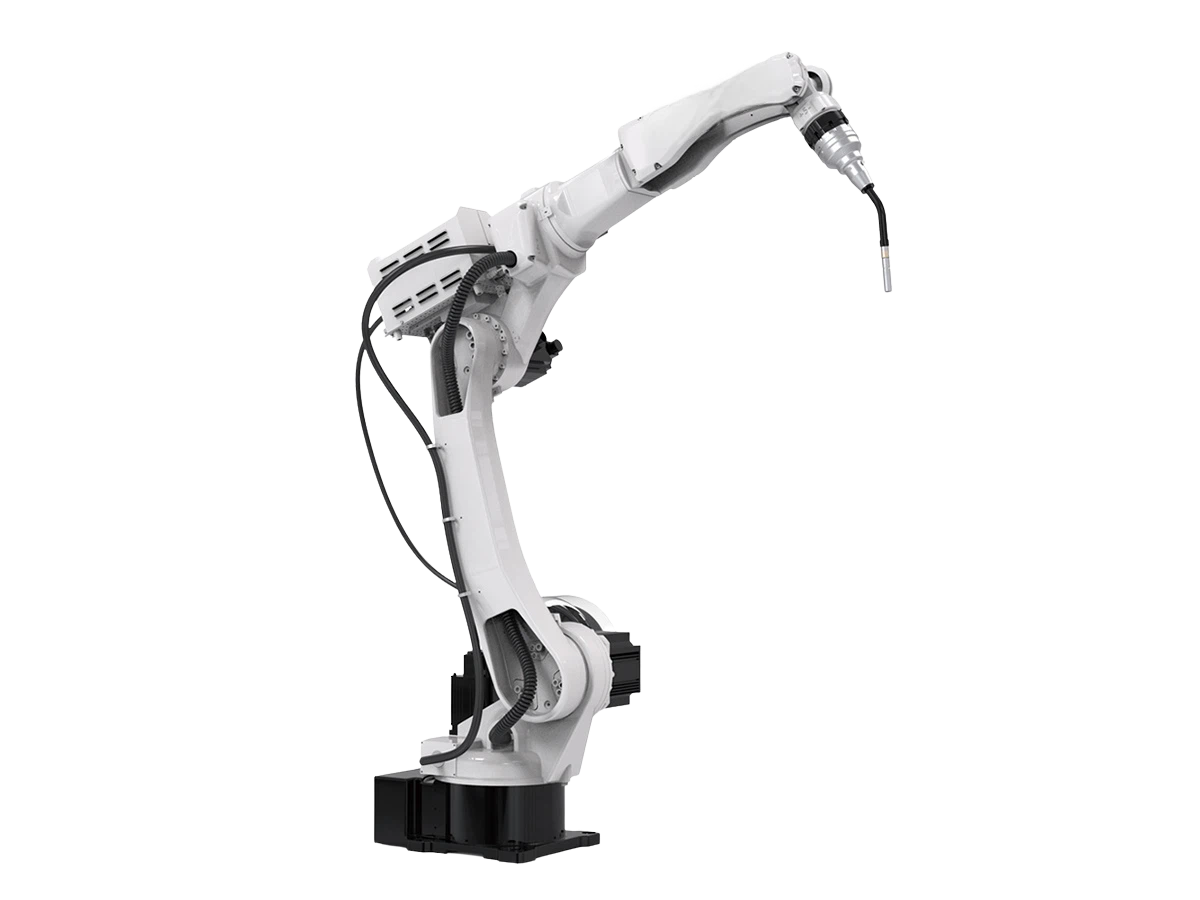

Built for modern fabrication lines, the 6 Axis 2000mm ArmSpan MlG Industrial Welding Robot combines working range, movement speed, and repeatable positioning in a compact robotic welding platform. Its vertical articulated structure gives manufacturers the flexibility needed to weld mild steel, carbon steel, and similar metal assemblies where consistent torch travel and stable path control are essential. For workshops seeking higher throughput without sacrificing weld quality, this robot offers a practical balance between reach, payload, and installation adaptability.

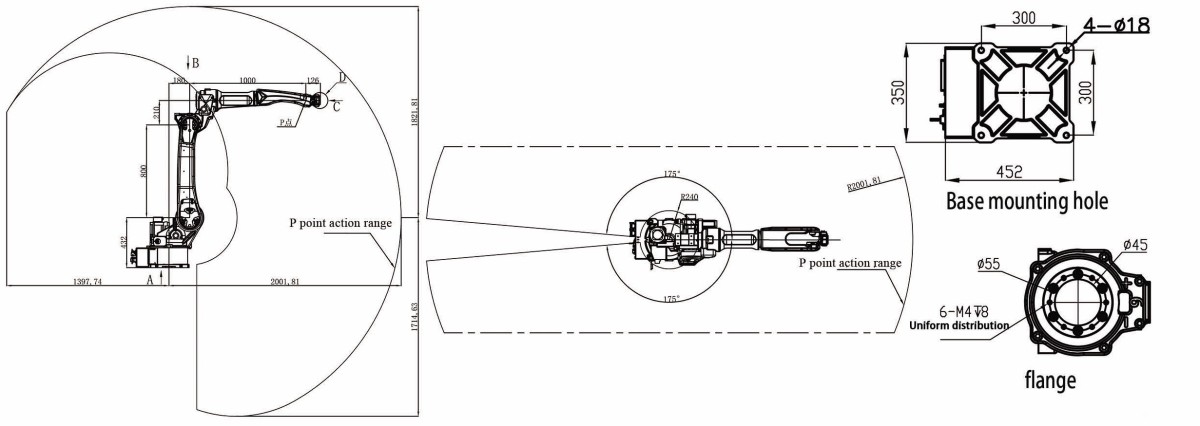

With a maximum reach of 2127 mm, the robot can cover large fixtures, deep work areas, and multi-station layouts more efficiently than shorter-arm systems. The 6-axis architecture supports smooth orientation changes around complex joints, corners, fillet lines, and curved weld seams. A payload capacity of 6 kg makes it suitable for carrying welding torches and related end-of-arm tooling used in automated MIG welding applications. Its repeatability of ±0.08 mm helps maintain process consistency, especially where identical parts are produced in batches and dimensional stability is critical.

Why This Robot Fits Automated Welding Cells

• Long working envelope for wider fixtures and larger welded parts

• 6-axis movement for improved access to difficult weld positions

• Stable repeatability for repeat production and reduced variation

• Fast axis speeds that support efficient cycle performance

• Multiple mounting options for flexible cell design

• IP65-equivalent protection for demanding industrial environments

Each axis is configured to support responsive and coordinated motion. J1 provides ±175° travel for broad base rotation, while J2 and J3 enable vertical and forward positioning across the work zone. The arm axes, including J4 through J6, are optimized for torch angle adjustment and seam tracking posture. This combination allows the system to approach welds from different directions, reducing the need to reposition parts manually and improving fixture efficiency. Faster wrist-axis movement is particularly useful when weld paths require frequent orientation changes.

Application Scenarios

This model is well suited to manufacturers that produce structural steel components, machinery frames, metal cabinets, brackets, agricultural equipment parts, vehicle subassemblies, and general fabricated products. It can also support contract fabrication businesses that need a versatile welding robot for mixed production tasks. Because it can be installed on the ground, ceiling, or wall, it is easier to integrate into space-sensitive production lines where floor area must be used efficiently.

1. Automated MIG welding of medium to large fabricated parts

2. Multi-pass welding processes requiring stable path repetition

3. Production cells with rotating positioners or fixed fixtures

4. Facilities upgrading from manual welding to robotic automation

5. Factories seeking more uniform weld appearance and better productivity
