1.Introduction for RNS1300 Sheet metal deburring machine:
This equipment features a dry sanding belt combined with four sets of universal sanding roller brushes. It is primarily designed for edge processing, hole deburring, and surface finishing of metal sheets, including drawing, descaling, and polishing. It can effectively remove burrs generated by stamping, shearing, laser cutting, plasma cutting, and flame cutting in a single pass, from all directions. As a result, all edges and holes of the workpiece achieve a smooth small R-arc finish. The entire processing procedure is safe and reliable, ensuring superior workpiece quality.
1.1 Dual-Station & Independent Operation Capacity
1.1.1The abrasive belt station first removes large burrs, such as slag particles, from the workpiece surface. Following this, the four sets of universal sand roller brushes—with adjacent brushes rotating in opposite directions—eliminate burrs on edges and inner holes while forming uniform R-angles. The R-angle size can be adjusted through process parameters and abrasive belt selection.
1.1.2 The pass-through processing method ensures that the dimensional accuracy of the workpiece remains intact throughout the operation.
1.1.3 Both stations can operate independently. The abrasive belt station is capable of surface drawing, polishing, descaling, and slag removal, while the sand roller brush station provides 360° deburring with no dead angles.
1.2 Flexible & Stable Conveying System
1.2.1 A vacuum negative pressure adsorption system is employed to firmly secure workpieces during processing, ensuring stability and precision.
1.2.2 The conveying speed is infinitely adjustable, allowing the machine to accommodate various workpiece types and processing requirements with great flexibility.
1.3 Efficient & Eco-Friendly Dust Removal
1.3.1 The machine is equipped with a wet vacuum cleaner. A high-pressure, high-flow top fan directs grinding dust into the dust removal chamber.
1.3.2 Dust is captured and deposited in water through a water spray system, providing environmentally friendly filtration and ensuring clean air emission.
1.3.3 This system also enables the recycling of ground metal powder, supporting green production practices and providing operators with a safe, clean working environment.
2.Technical parameter for RNS1300 Sheet metal deburring machine
3.Characters for RNS1300 Sheet metal deburring machine:
3.1 This equipment features a combined configuration of a dry sanding belt and universal sanding roller brushes. Workpieces are securely fixed through vacuum adsorption, with belt conveying and feeding ensuring stable transport throughout the process.
3.2 The two grinding stations can be used either in combination or independently, depending on specific processing requirements. Each grinding head is controlled by its own independent electronic control system. The belt head station can be operated alone to perform surface drawing, polishing, slag removal, and descaling on flat plate parts. When the sand roller brush station is operated independently, it provides 360° deburring with no dead ends.
3.3 The belt station is equipped with a laser beam photoelectric switch that controls the belt automatic correction function. This system is safe, stable, and offers strong anti-interference capability.
3.4 The front end of the abrasive belt features a lock nut structure, which not only facilitates adjustment of the front-to-rear flatness of the machine head but also enables quick disassembly for convenient replacement of abrasive belt consumables.
3.5 Both the front and rear of the abrasive belt are equipped with limit switches to prevent belt misalignment or breakage, triggering an automatic stop and braking function for enhanced operational safety.

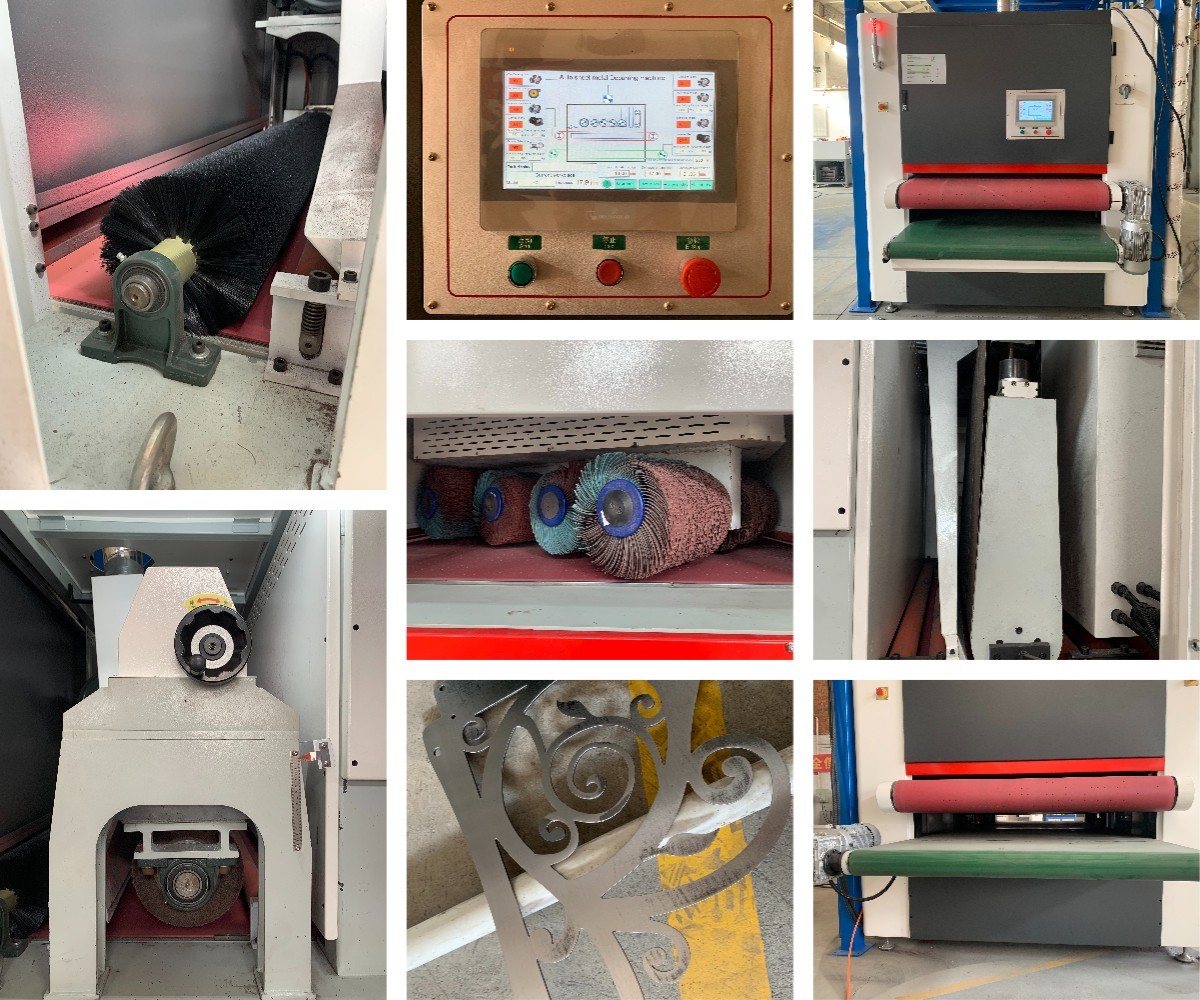

4.More details for RNS1300 Sheet metal deburring machine:

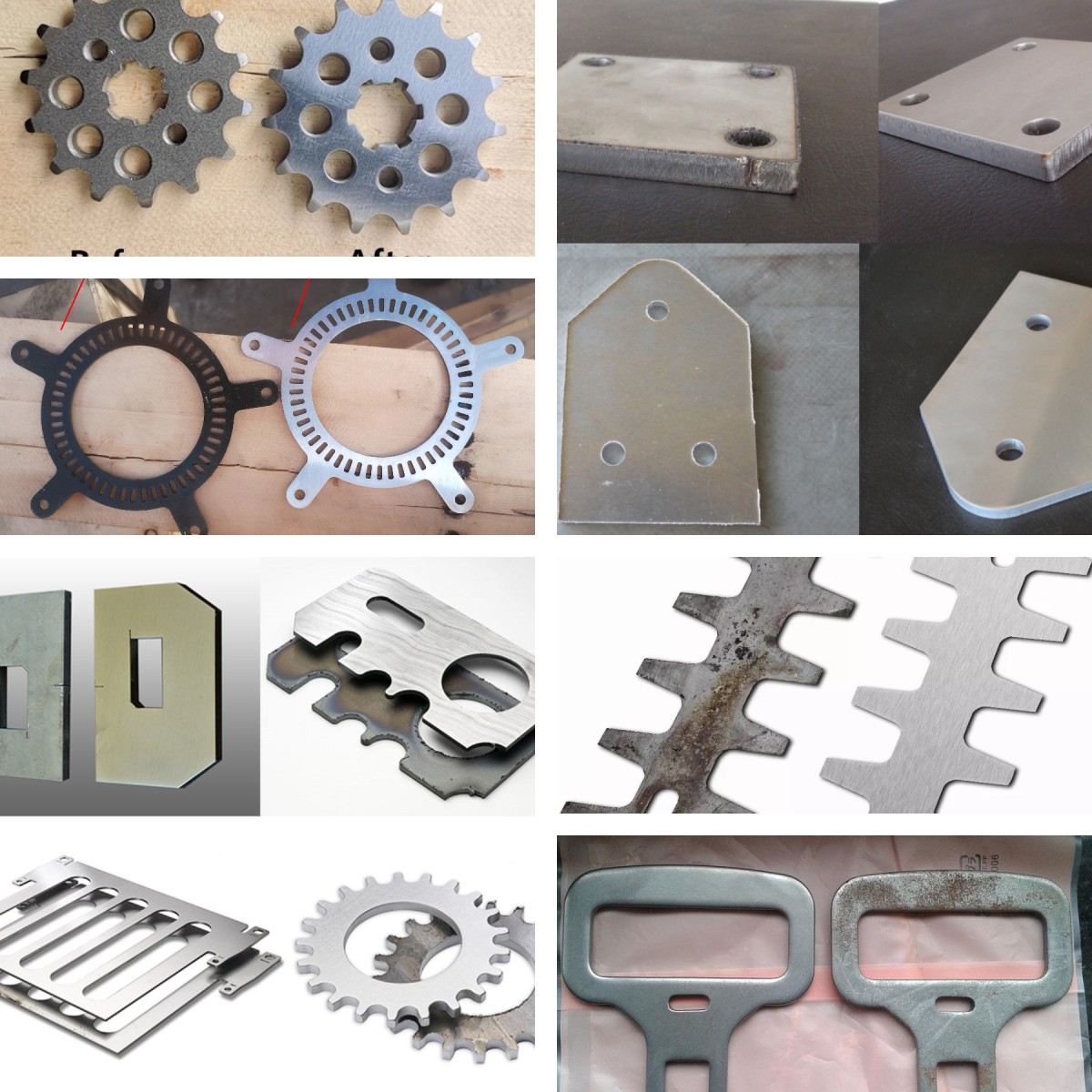

5.Application for RNS1300 Sheet metal deburring machine:
products faq
A deburring machine is specifically designed to remove sharp edges, burrs, and slag from cut or punched metal sheets while preserving the workpiece's dimensional accuracy. It uses abrasive belts and rotating brushes to smooth edges and surfaces. A grinding machine, by contrast, is used for heavy material removal, surface flattening, or achieving tight thickness tolerances—often removing significantly more material and leaving a rougher finish.
Yes. Large workpieces are held in place by pressure rollers as they move through the machine. Smaller workpieces are secured by a vacuum table system underneath the conveyor belt, which prevents them from shifting during processing. The minimum part size typically starts from approximately 30×30 mm or 50×50 mm, depending on the model.
Many models support double-sided deburring, processing both the top and bottom surfaces simultaneously in a single pass. This eliminates the need to flip workpieces manually, saving up to 60% of processing time and significantly improving productivity—especially valuable for high-volume production environments.
The machine is suitable for a wide range of materials, including:
Stainless steel and carbon steel
Aluminum and aluminum alloys
Copper and brass
Galvanized steel
Surface-treated metals and some plastics
Processing parameters (such as conveyor speed and brush pressure) can be adjusted via the control system to accommodate different materials and thicknesses.
Routine maintenance includes:
Inspecting and replacing abrasive belts and brush rolls as they wear
Cleaning the vacuum table and dust collection system
Lubricating moving parts and conveyor components
Checking motor and drive system performance
Calibrating thickness sensors and pressure settings periodically
Our machines are designed with simple access to wear parts, minimizing downtime and making maintenance straightforward. We provide detailed maintenance schedules and spare parts support.
