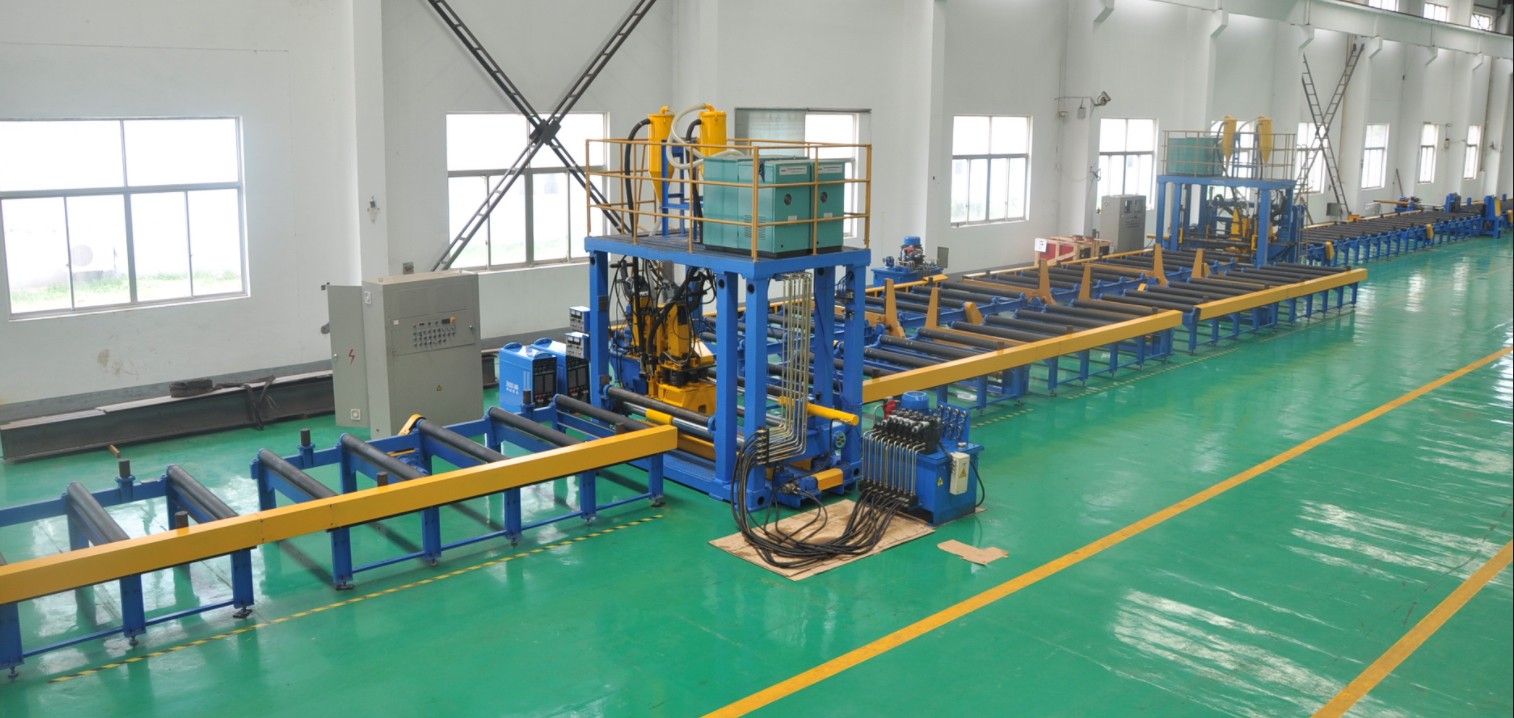

1.Introduction for Horizontal H beam line:

The Horizontal H Beam Welding Line consists of a Horizontal H Beam Assembly Machine, Horizontal H Beam Welding Machine, tilting machine, and transmission rollers. It is ideally suited for high-volume, light-duty H-beam manufacturing, offering production speeds 1.2 to 1.5 times fasterthan conventional H-beam welding lines.

Technical Features:

1. Horizontal Assembly
The line adopts horizontal assembly, enabling complete assembly in a single pass. This significantly improves efficiency compared to traditional vertical assembly methods.

2. Horizontal Submerged Arc Welding
Horizontal SAW greatly reduces thermal deformation caused by welding heat, ensuring improved dimensional accuracy and straightness of the finished beam.

3. Single Arc – Double Wire SAW
The system utilizes single-arc, double-wire submerged arc welding technology, which delivers substantially higher welding speeds than conventional single-wire, single-arc SAW configurations—boosting productivity without compromising weld quality.

2.Technical parameter for Horizontal H beam line

3.Characters for Horizontal H beam line:

3.1 Horizontal Assembly in One Step
The web plate and flange plate are assembled and tack-welded in a horizontal position, simplifying the operation process while improving assembly accuracy and overall efficiency.

3.2 Minimal Welding Deformation
The horizontal welding method, combined with symmetrical or double-sided welding techniques, effectively reduces thermal deformation—resulting in superior straightness and flatness of the finished H-beam.

3.3 High Welding Efficiency
The system widely adopts single-arc double-wire or double-wire double-arc welding technologies, with welding speeds reaching 0.3–1.9 m/min (some models up to 500–1500 mm/min), significantly boosting production capacity.

3.4 High Degree of Automation
Integrates assembly, welding, flipping, conveying, and correction processes into a continuous workflow. Supports one-click startup and automated material flow, greatly reducing manual intervention.

3.5 Intelligence & Informatization
Advanced production lines are equipped with PLC control systems, RGV cart transport, real-time quality monitoring, and production management software—supporting green manufacturing and intelligent factory construction.

3.6 Double-Sided Welding Capability
A chain-type flipping machine enables 180° turnover, allowing continuous welding on both sides of the H-beam and ensuring uniform weld quality across the entire product.
